Description:

• Stationary lift table is also named hydraulic dock lift, which is scissor structure. So stationary lift table have both scissor lift and dock leveler function.
• Stationary lift table are used for lifting and lowering goods at required heights in safe conditions for the operator. Main components are the top platform, the lower frame, the scissor system activated by one or more cylinders and hydraulic motor.

• Stationary lift tables are the best solution for loading or offloading trucks for a ground level application. A stationary lift table provides a number of benefits. They eliminate the danger and space requirements associated with a ramp and they improve safety by eliminating manual handling of freight from the truck bed height to the ground.

• Good quality and high safety performance contribute "King Lift" standard stationary lift table to become popular lift equipment in many countries

Noted: Usually stationary lift table width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced anti-skid checkered surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Application:forklift loading hydraulic dock lift

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Stationary lift table precautions:
1. Manual decline valve
2. Explosion proof valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:
1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Stationary lift table application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

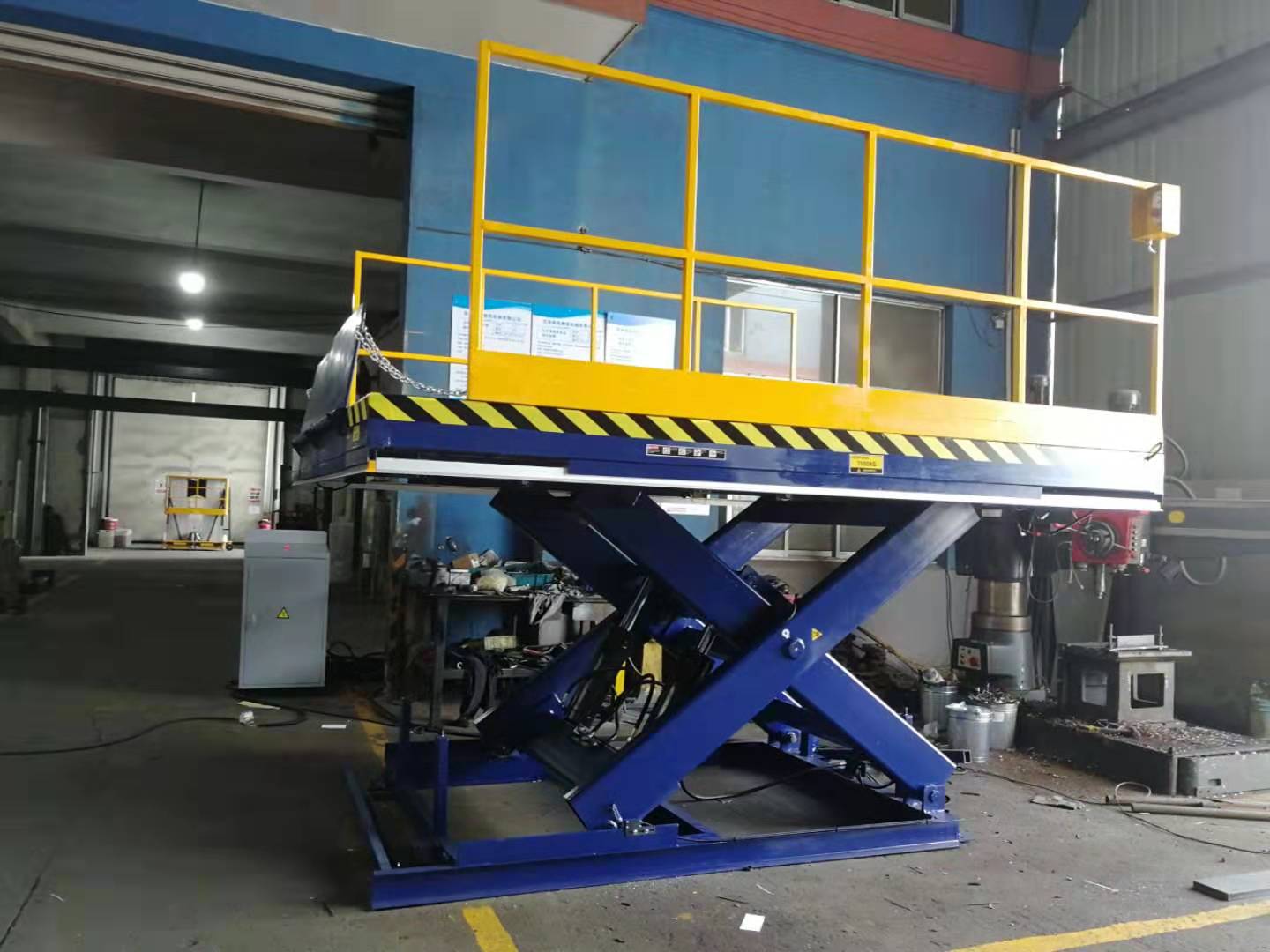

Stationary lift table sketch:

loading bay lifts

loading unloading ramp
