Warehouse Tescopic Dock Ramp, Telescopic Dock Leveler For Pallet Truck At Logistic Distribution Centers
Warehouse Tescopic Dock Ramp Description:
-
A Warehouse Telescopic Dock Ramp with retractable lip 800mm long which bridges the gap between the dock edge and vehicle by pushing out a horizontal safety lid.Available in three variations; free standing, concrete encased or suspended frame. The deck is manufactured from 8mm to 10mm chequer plate dependent on overall size of the dock leveller.The safety lip is manufactured by 20mm durable plate with a 250mm leading edge. Steel supports are welded to the underside for reinforcement.All hydraulic warehouse telescopic dock levellers are easy to operate with hydraulic control dock system.
| Model | Capacity (kg) | Platform size (mm)W*L | Lip Telescopic length
(mm) | Adjustable height (mm) | Power (kw) | Pit size (mm) |
| UP(+) | Down(-) | W | L | H |
| TDCQ6-0.6 | 6000 | 2000*3000 | 800/900/1000 | 300 | 300 | 0.75 | 2030 | 3000 | 600 |
| TDCQ8-0.6 | 8000 | 2000*3000 | 800/900/1000 | 300 | 300 | 0.75 | 2030 | 3000 | 600 |
| TDCQ10-0.6 | 10000 | 2000*3000 | 800/900/1000 | 300 | 300 | 0.75 | 2030 | 3000 | 600 |
| TDCQ15-0.6 | 15000 | 2000*3000 | 800/900/1000 | 300 | 300 | 0.75 | 2030 | 3000 | 600 |
Noted: Usually The Warehouse Telescopic Dock Ramp width is 2000mm, it also can be custom as your requirements!.The lip can extend telescopic reached 800mm/900/1000mm.
Main Features:
- 1. 20mm thickness anti-skid plate make the telescopic lip
- 2. 8-10 pieces "C" or "H" beam to support heavay duty deck.
- 3. Anti-skid high-strength chequered steel on the top face of the platform.
- 4. Full width one -piece lip retractable by hydraulic dock system.
- 5. Heavy duty high pressure hydraulic cylinders
- 6. First class imported hydraulic power pack, good seal capacity and long life
- 7. Rubber bumpers to protect machine-self when the truck reverse to dock platform.
- 8. Full range toe guard to protect user when operater use it.
Configurations:
- Electric system: Schneider contactor, CHINT electrical components
- Hydraulic System: ARGO-HYTOS Swiss brand power pack
- Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
- Main Support: 8-10 pieces"C" or "H" beam under the deck to supporting.
- Deck lip platform thickness: 20mm anti-skid plate
- High-pressure oil hose: Double steel mesh in the rubber hose.
Optional Configuration:
- Hydraulic Power Pack:ARGO-HYTOS Swiss brand.
- Electric controller with emergency or without.
Applications:
1. Site: Work Shop, logistic center, big cold storge centre etc.
2. Warehouse telescopic dock levelers use: Loading/unloading Cargo etc.

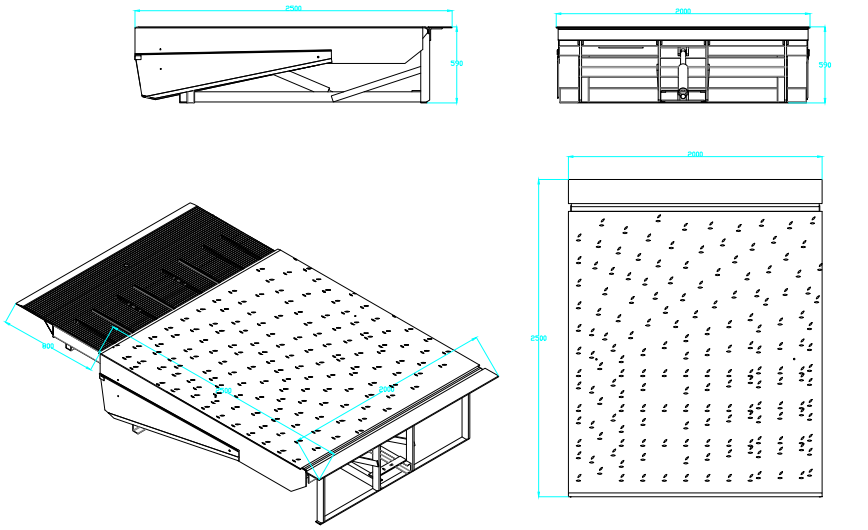

Warehouse Telescopic Dock Ramp Sketch:
Warehouse Telescopic Dock Ramp Safety Precaution:
1. Emergency button
2. Toe guards on both side to protect operation worker feet.
3. Maintaince rod break though the lip fully protect the safety of the serviceman.
4. Bumper block protect the dock leveler it-self when truck reverse to th.
5. Oil tube with steel mesh structure . Max oil pressure 48MPA.
6. Double cylinders support the lip telescopic that so stable and reliable.
