Hydraulic Container Leveler 3000KG Loading Bay Lifts For Truck Loading Or Unloading

Loading Bay Lifts Platform 3000KG Scissor Dock Lift For Container Leveler

Description:

• Hydraulic loading bay lifts provides the best solution for loading and offloading goods between trucks and ground floor.You can save the high cost of loading dock construction, work from any truck bed level to grade level and handle unstable loads quickly and safely with hydraulic dock lifts.
• Hydraulic loading bay lifts can be installed indoors or outdoors, pit mounted, pad mounted or surface mounted.Its capacity can be varied from 300kg to 20-30tons, being applicable for kinds of working conditions. Also, it has high safety features and devices like removable safety railings, kick plate, snap chains and lip.
• In many cases, they represent the best solution for the manual load handling, in full observance of the safety standards with regards to functioning, cost-saving, safety and health of operators during work.A hydraulic loading bay lifts is usually the smallest of the lift platform you will find at any given job site, it is also the most versatile one.
• The standard hydraulic loading bay lifts is one of the "King Lift" featured products with standard travel height, platform size, and load capacity. This product can be manufactured in an advanced large-scale production line. Good quality and high safety performance contribute "King Lift" standard lift table to become popular lift equipment in many countries.

Noted: Usually small scissor lifts width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced skidproof diamond surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Skidproof high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Safety protected 3, with emergency safety valves
• 10. Lift type, electric hydraulic scissor

Parameters:

• 1. Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• 2. Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• 3. Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• 4. Platform Surface : Antiskid checkered plate steel
• 5. Main Support: 10# I beam
• 6. Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• 7. High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Hydraulic dock lifts precautions:

• 1. Manual decline valve
• 2. Explosion proof valves between oil cylinder and oil tube.
• 3. Number of floor layers indicator
• 4. Door inter-locking device if indeed need.
• 5. Over height protect
• 6. Running indicator
• 7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Small scissor lifts application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

Custom hydraulic dock lift from client feedback:

3000KG Loading Bay Lifts

7.5kw Hydraulic Loading Bay Lifts

2000*3500mm Scissor Dock Lift

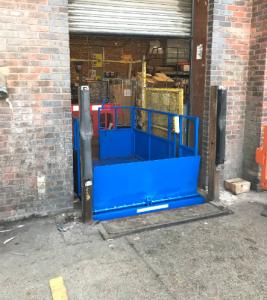

Hydraulic Container Leveler 3000KG Loading Bay Lifts For Truck Loading Or Unloading Images
