Hydraulic Scissor Loading Dock Lifts 2000*4000MM Platform Which Installed In Wharehouse Loading Bay

Hydraulic Scissor Loading Dock Lifts 2000*4000MM Platform Which Installed In Wharehouse Loading Bay

Hydraulic Scissor Dock Lift Description:

• Hydraulic Scissor Dock Lift offers wide range of a variety of features and options that can be customized to meet your requirements, pair this with our highly trained customer solutions team and design engineers to guarantee the right Loading Dock Lift Platform for your application.Feature Highlights include the unique and market-leading features with diagnostics, indexing, safety recoil and audible alarm.

Noted: Usually Hydraulic Scissor Dock Lift width is 2000mm, if over 2000mm width, it will need to be spliced. And also can be custom as your requirements!


Main Features:

• 1. Reinforced skidproof diamond surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Skidproof high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option, It also can be manual or electric operation.
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and with long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Safety protected 3, with emergency safety valves.

Parameters:

• 1. Electric system components: Schneider contactor, CHINT electrical components ( Made In China)
• 2. Hydraulic System: Power pack(Made In China) , Oiltec (Italy brand) or as requirements
• 3. Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• 4. Platform Surface : Antiskid checkered plate steel,Stainless checkered plate on it.
• 5. Main Support: 10# I beam
• 6. Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• 7. High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose to protect the oil tube to bear enough oil pressure not crack.

Hydraulic scissor dock lifts precautions:

• 1. Manual decline valve
• 2. Explosion proof valves between oil cylinder and oil tube.
• 3. Number of floor layers indicator
• 4. Door inter-locking device if indeed need.
• 5. Over height protect
• 6. Running indicator
• 7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Hydraulic Scissor Dock Lift Application: Lifting and loading/unloading cargo as dock leveler function, etc.

Custom hydraulic scissor dock lift from client feedback:

2000*4000MM Loading Dock Lift Platforms

Scissor Loading Dock Lift Platforms

2000kg Loading Dock Lift Platforms

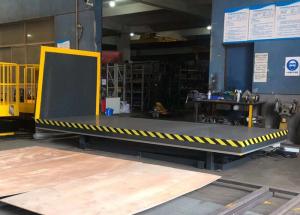

Hydraulic Scissor Loading Dock Lifts 2000*4000MM Platform Which Installed In Wharehouse Loading Bay Images
